2012-2016 Honda CR-V Oil and Oil Filter Replacement

We did oil change today, at Edison Pep Boys (the one nearest to us in South Amboy was understaffed and they refused service, hence no Bubba meal). We ate at Penang Restaurant, drinks from Gongcha.

They were supposed to get the right signal lights (blinking too fast) fixed, but for some reason allegedly miscommunication, they only replaced the bulb, front one, and not what they thought would be relay problem, claiming that the front bulb wasn't working. I didn't check before so I couldn't be sure what they said was true or not. Could only take their word for it.

They also wanted to do air+cabin filters replacement ($30-$40) and brake flush ($70), supposedly a thing to do every so many miles. I had to look these up.

I think all these I could probably do myself. Below is the oil/oil filter change instruction I found for the exact model we have.

And the video below is the signal relay replacement (assuming the problem is the relay) I have not tried this:

And this one is for Brake flush of the same model, again, not tested, check comments for a better picture of their method:

Source

Written By: Clay Casey(and 5 other contributors)Comments: 0

• Comments: 0
• Favorites: 0
• Completions: 1

Difficulty

Moderate

Steps

13

Time Required

20 minutes

Sections

1

• Oil and Oil Filter13 steps

Flags

0

Introduction

This guide shows how to change the oil and oil filter for Honda CR-V 2012-2016 models.

Keeping the engine healthy is critical in getting good life out of your vehicle. Part of maintaining engine health is replacing the oil and oil filter on a regular basis. Honda CR-V 2012-2016 models need to have their engine oil and oil filters replaced every 7,500 miles or 12 months. If your car has high mileage then it’s suggested to replace the oil with a high mileage full synthetic. Most parts and tools listed can be found at a local auto supply store or purchased from an auto supply store online.

Tools

• 17mm Socket
• Socket Wrench
• Oil filter pliers or socket
• Oil Filter Wrench

Parts

• Engine Oil Filter
• 0W-20 Motor Oil
• Oil Drain Plug and Gasket
• Oil Drain Pan

1. Step 1 Oil and Oil Filter
   • Open the hood by pulling the hood latch.
   • Oil may be hot if the engine has not cooled.
   • Keep vehicle in park and off unless otherwise noted.
   • Chock both back wheels with blocks of wood to prevent car from rolling.
    Add a comment
2. Step 2

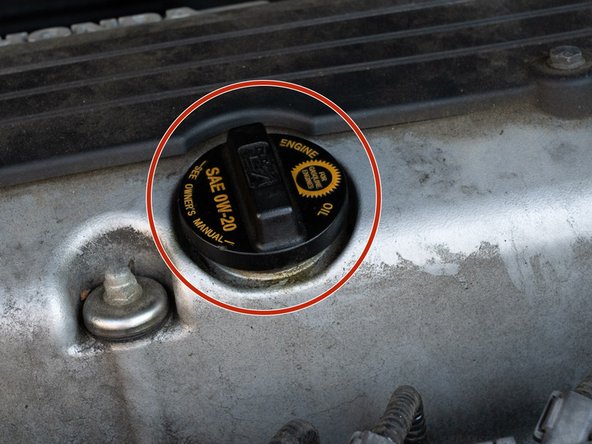

   • Let the vehicle cool for 15 minutes if needed. Clean the area around the oil cap. Remove the oil cap.
    Add a comment
3. Step 3

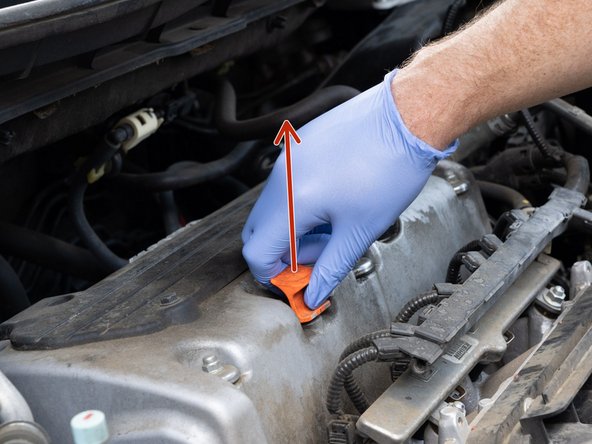

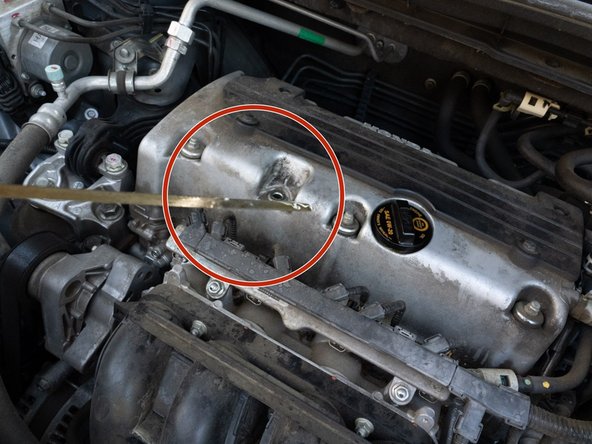

   • Locate the dipstick and check oil level.
    Add a comment
4. Step 4

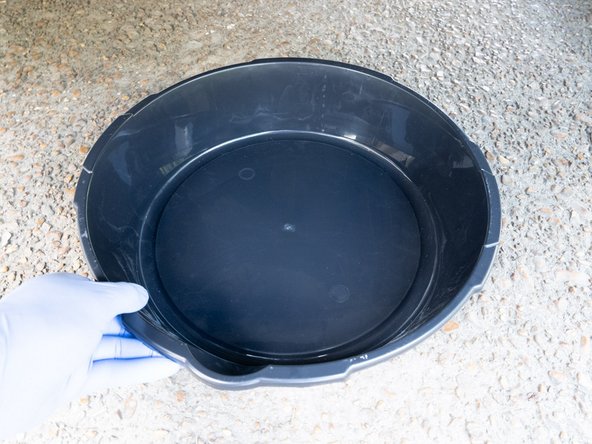

   • Place the drain pain under the chassis and align with the drain bolt.
    Add a comment
5. Step 5
   • Locate the drain bolt.
    Add a comment
7. Step 6
   • Remove the drain bolt with a 17mm socket wrench, and completely drain the oil.
    Add a comment
8. Step 7
   • Remove the oil filter with a 45mm oil filter socket.
    Add a comment
9. Step 8
   • Replace the drain bolt with a new drain bolt gasket (crush washer); Honda Washer, Drain Plug (14MM) 94109-14000. Use the 17mm socket wrench to tighten.
    Add a comment
10. Step 9
    • Install the new filter in place of the old filter. Hand tighten instead of using the oil filter wrench.
     Add a comment
11. Step 10

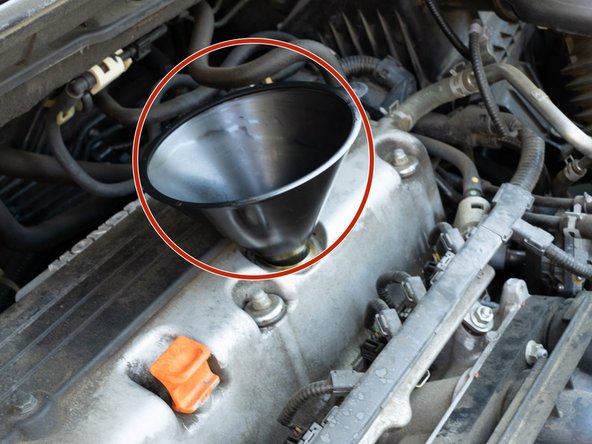

    • Place the medium funnel and add new 0W-20 full synthetic engine oil. Add 4.2 quarts of oil.
     Add a comment
12. Step 11
    • Replace the oil cap.
     Add a comment
13. Step 12
    • Start the vehicle, and check for any leaks around the oil filter and oil drain plug.
    • Stop the vehicle and let the engine rest for 5 minutes.
     Add a comment
14. Step 13
    • Use the dip stick to double check oil level and add more if needed.
    • Make sure the oil level is in between the low and high marks on the dip stick. Replace the dip stick and close the hood.

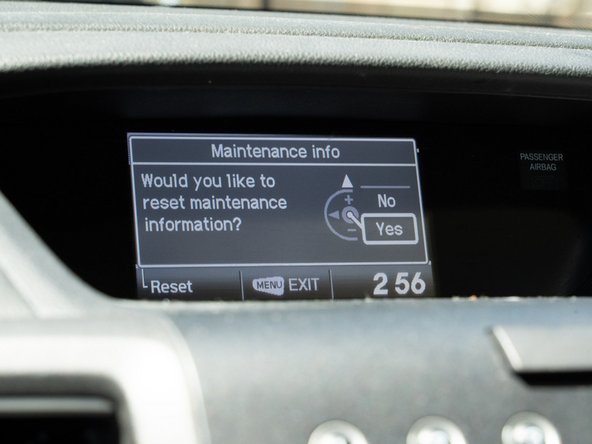

    • Reset the oil life in the maintenance section of the vehicle computer.
